The Audi Q5 SUV is a top choice for drivers who value performance and versatility. For outdoor enthusiasts and daily users alike, activities like camping, fishing, off-roading, and cargo hauling often require extra space—making a roof rack platform a must-have upgrade. This step-by-step guide will walk you through installing a roof rack on 2015-2022 Audi Q5 models, including essential tips for a secure fit.

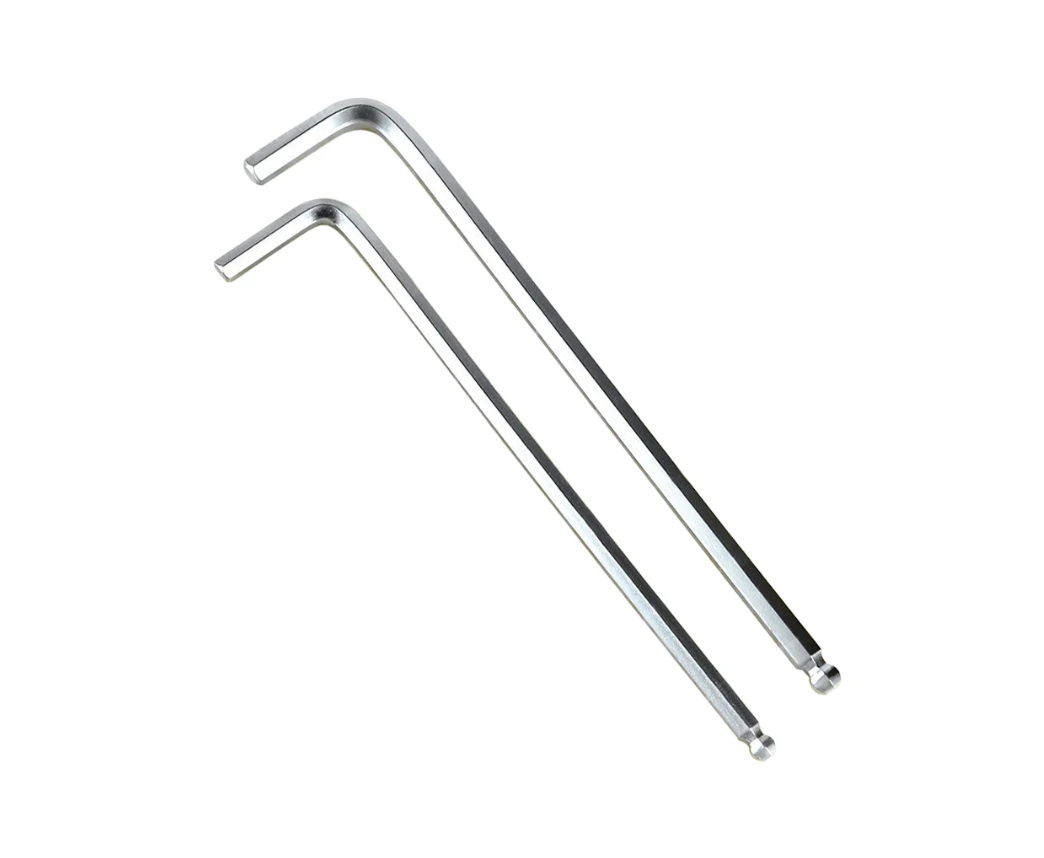

Installation of audi q5 roof rack tools
Audi q5 roof rack accessories and essential requirements

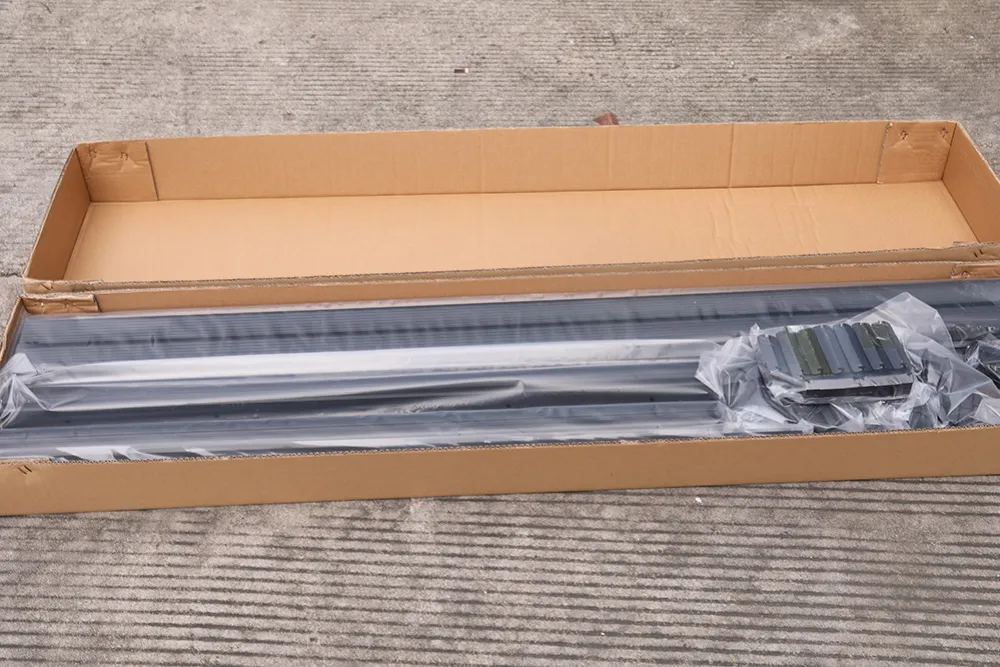

Before starting your Audi Q5 roof rack installation, lay out all included components—Audi Q5 roof rack platform rails, mounting clamps, and hardware like screws and washers—on a flat, padded surface (such as a cardboard box or soft cloth) to avoid scratching the parts. This ensures you have everything needed and prevents damage during assembly.

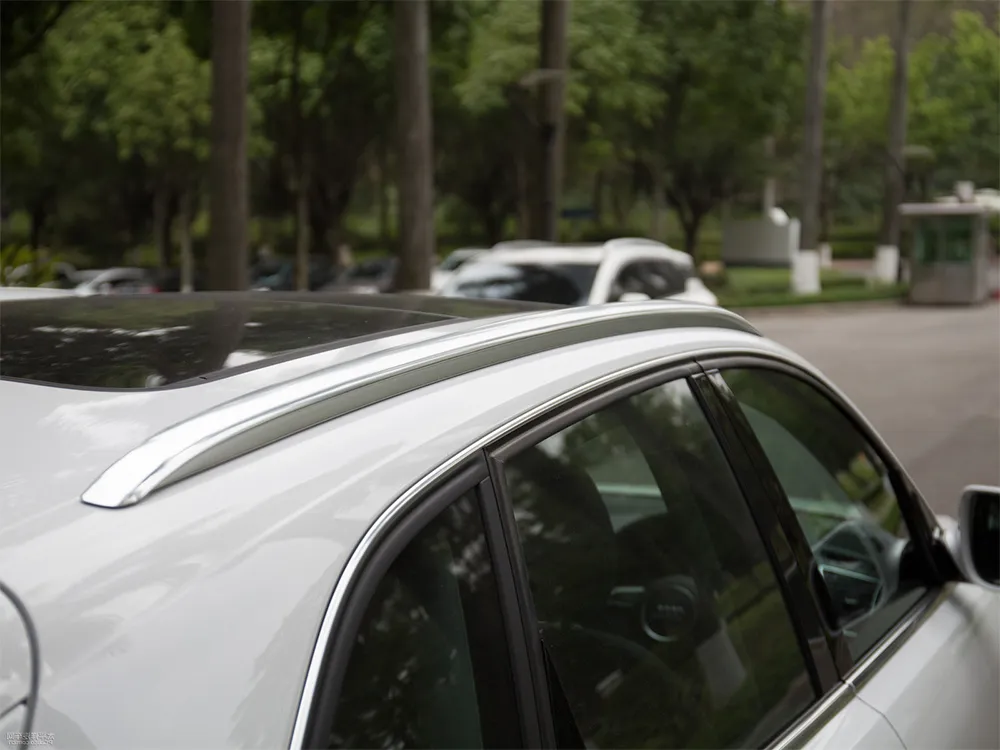

Note: Ensure that the genuine audi q5 roof racks is not removed and is not damaged. The clamps used for fixing are directly installed on the original vehicle track mounting slot. (The Factory roof rail for Audi Q5 roof rack weight limit is 150KG).
How to install audi q5 roof rack– specific steps

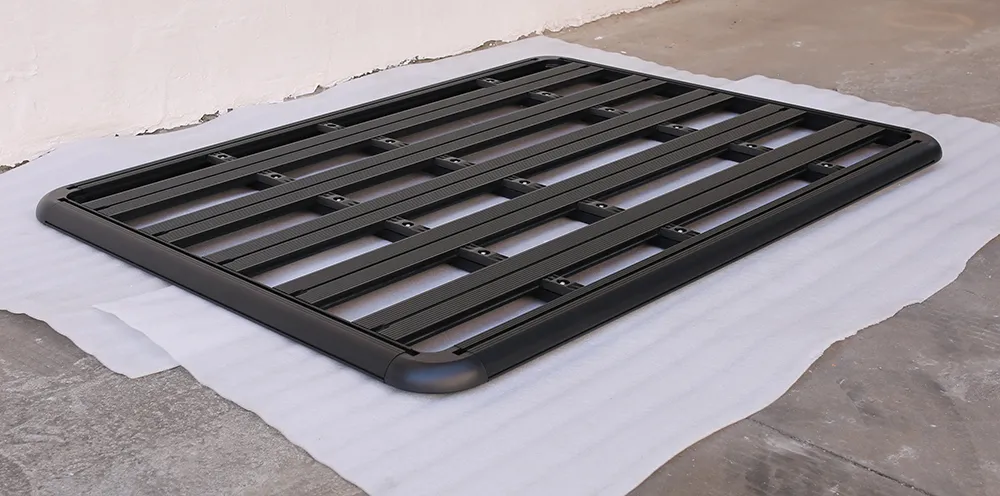

Step 1: Assembling the Audi Q5 Roof Rack Platform

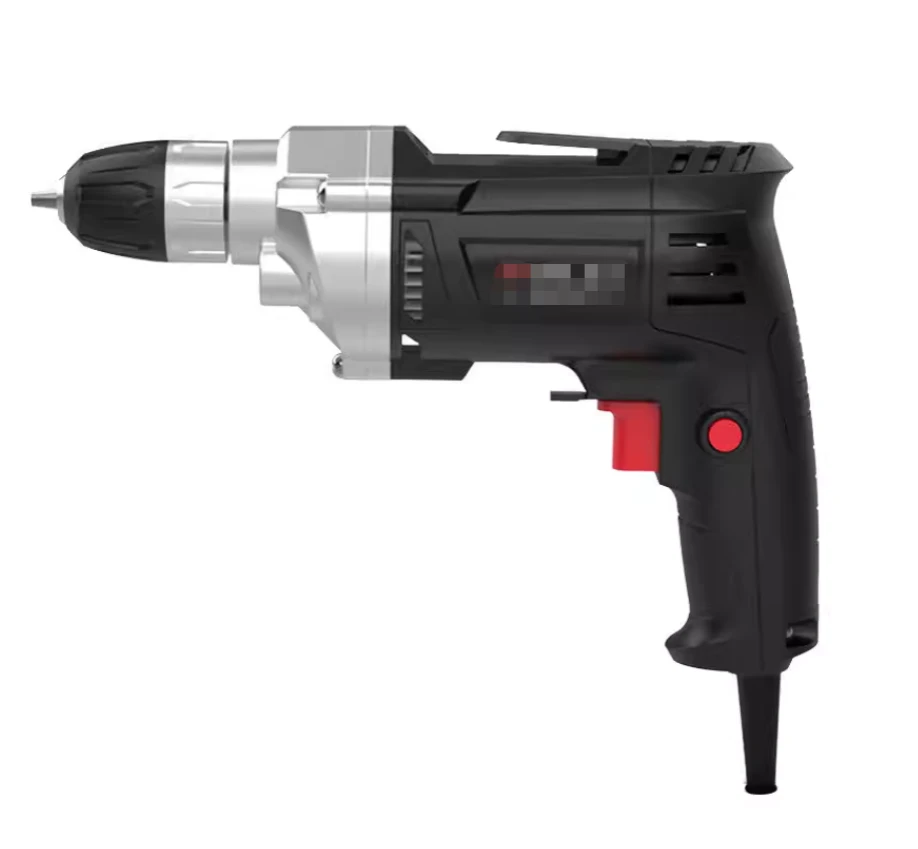

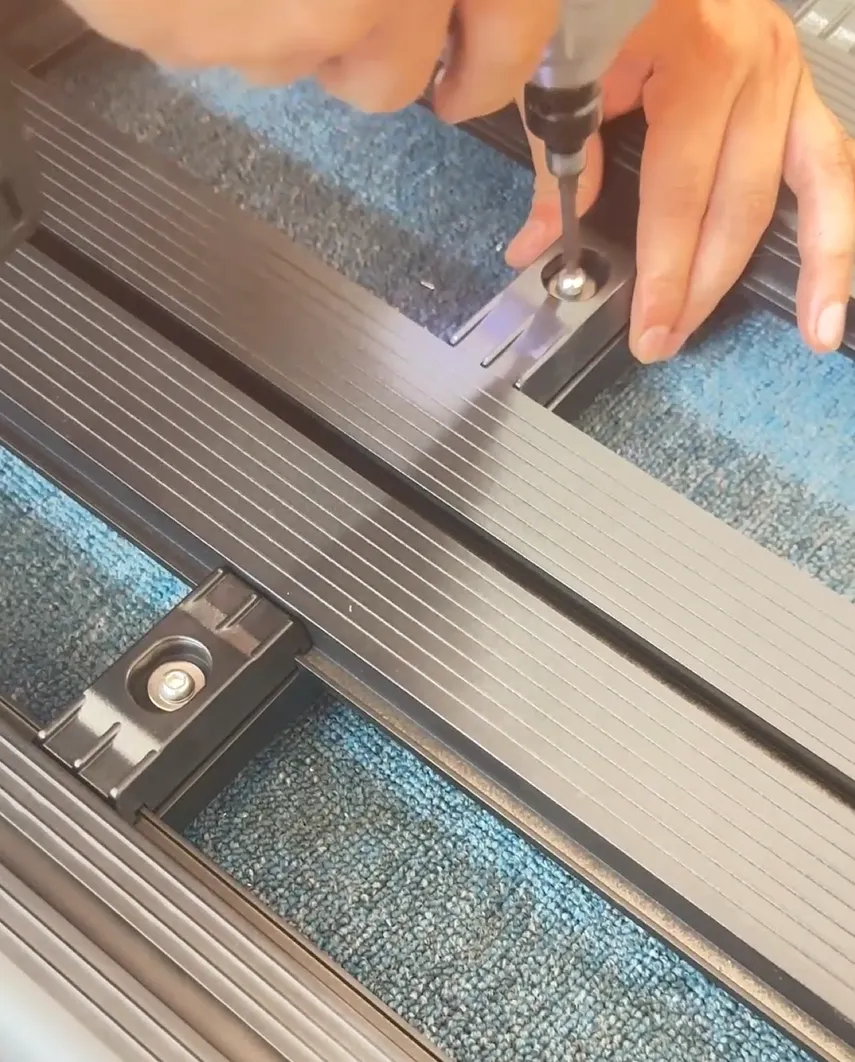

Assemble the Audi Q5 roof rack platform using a power drill or wrench to tighten the screws, forming a stable rectangular frame. Leave the center top screw loose temporarily—this will be adjusted later once the platform is mounted to your vehicle’s roof rails. The standard roof rack platform components dimensions for the Audi Q5 are 1.6m (L) × 1.23m (W).

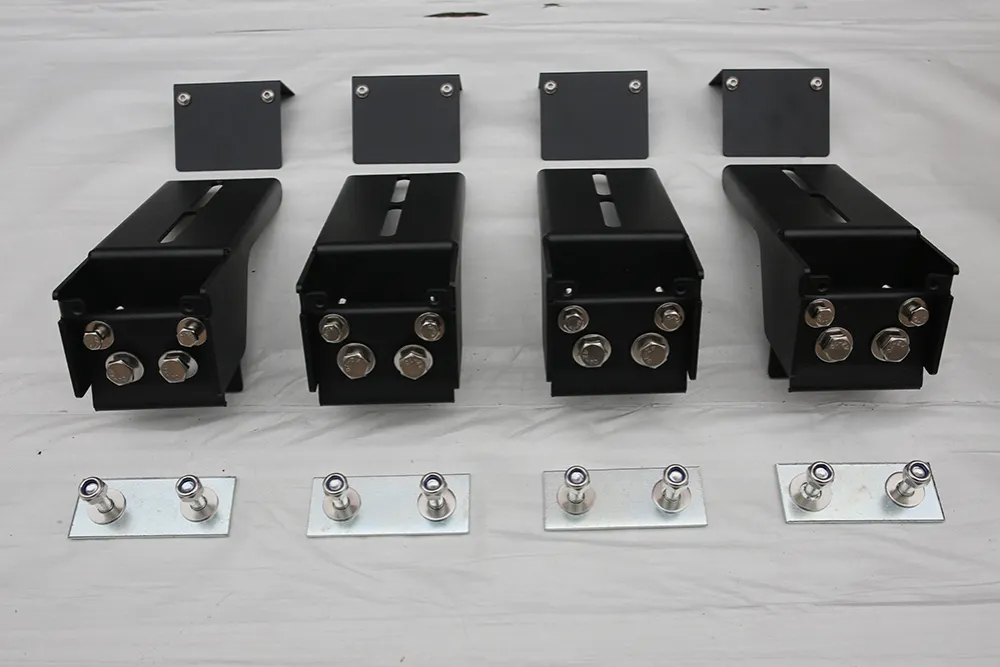

Step 2: Audi Q5 roof rack mounting hardware

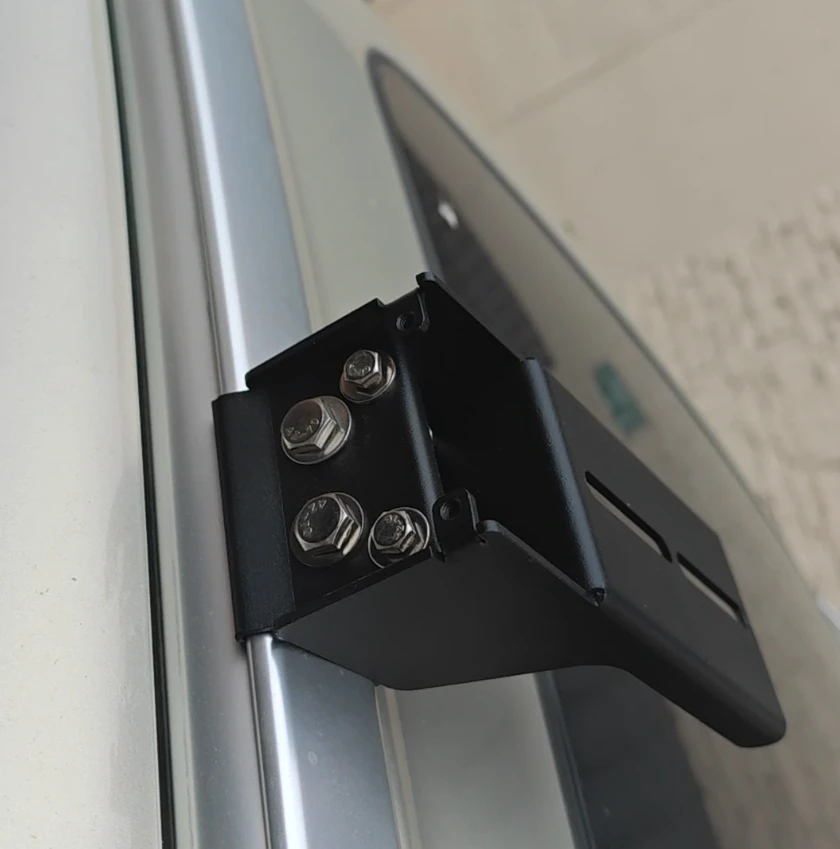

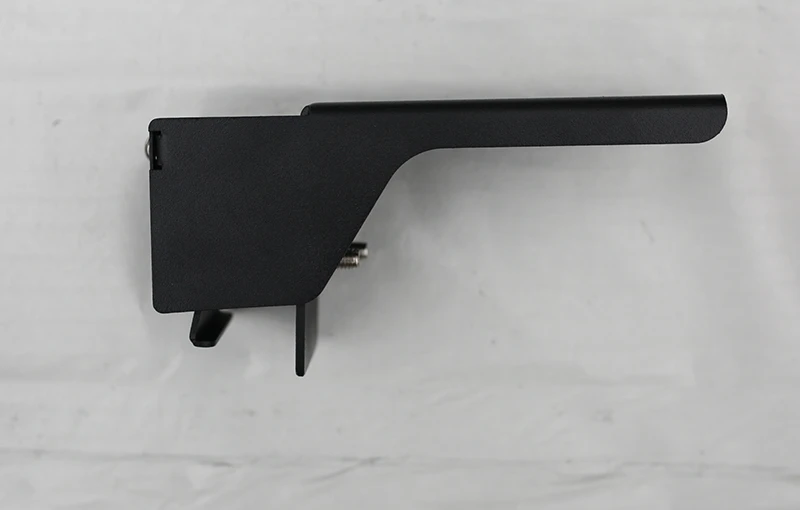

The Audi Q5-specific mounting brackets feature an integrated hook designed to lock into your vehicle’s factory roof rail mounting slots. To install:
- Press the hook firmly into the rail slot to ensure it clamps both the inner and outer edges of the OEM roof rail.
- Use an ratchet wrench to tighten the two lower large screws, then secure the two upper small screws.
- Press the bracket by hand to confirm the hook is locked in place, then repeat for the remaining three brackets.
Once all four brackets are installed, the system can safely support over 150KG of weight.
Step 3 : Step 3: Attach Mounting Clamps to Connect Audi Q5 Roof Rack Platform & Factory Roof Rail
Lift the roof rack platform to the roof, then align the bolts under the platform with the holes on the top of the fixed piece fixture, and finally tightenthe corresponding nuts with an adjustable wrench. The nuts we come with have anti-loosening function, and it takes a bit of force to tighten themwith a wrench. After connecting and fixing the four fixtures to the car roof rack platform, then tighten the screws on the top of the platform that arenot secured, and the installation is basically completed.

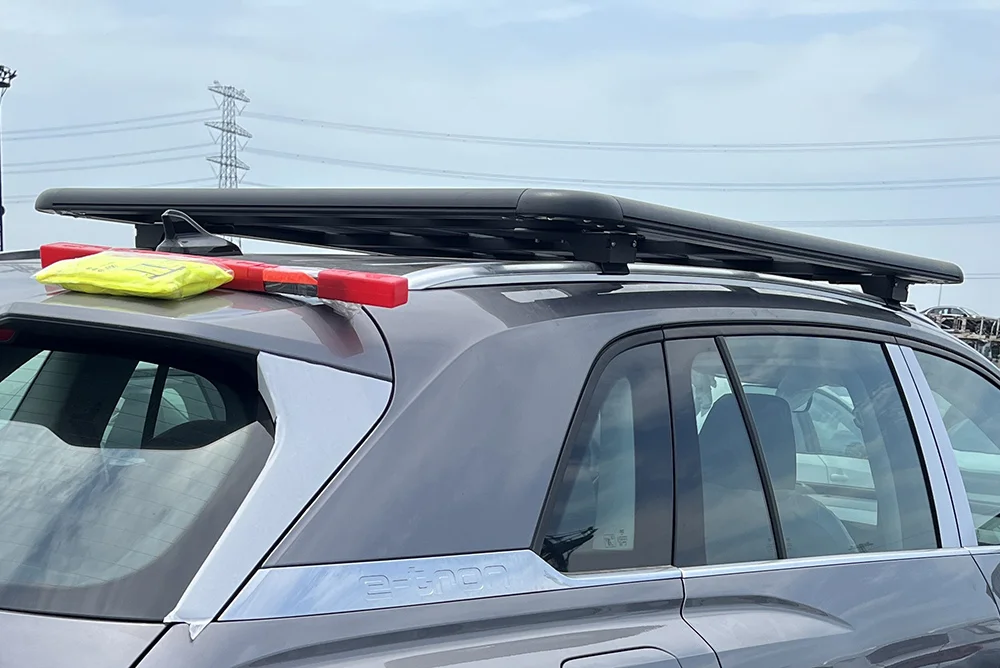

Step 4 ：Check the stability after installation

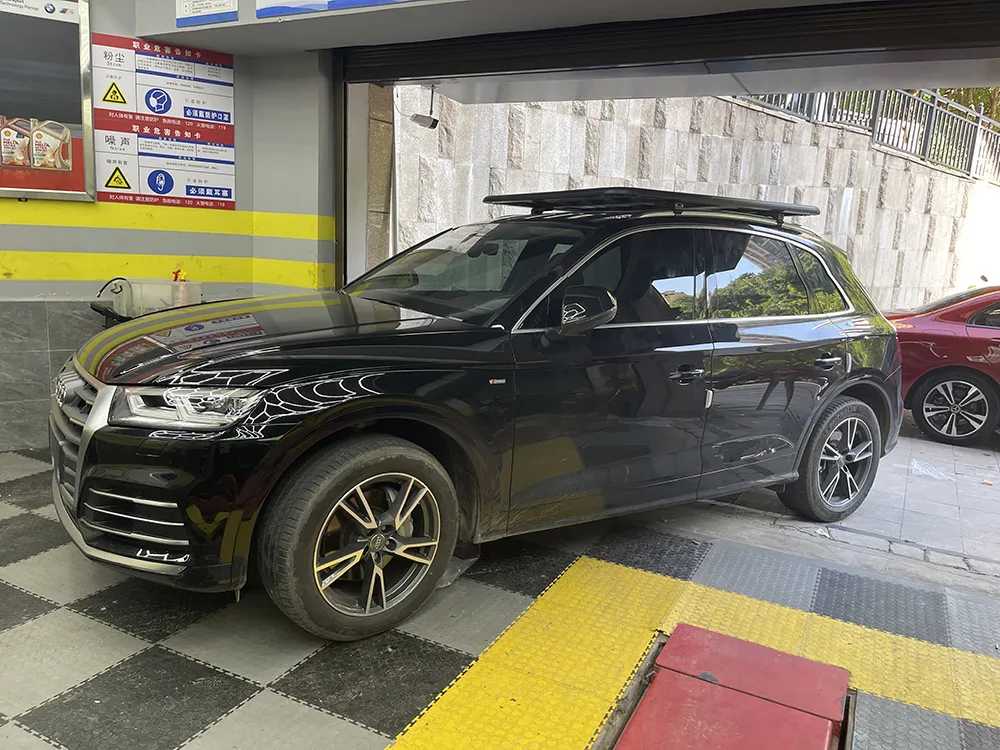

To confirm a secure installation, grab the edges of the roof rack platform and shake it vigorously from side to side. If the platform stays firmly attached while the vehicle body moves, your installation is successful. The entire process typically takes 1.5–2 hours and can be completed solo, though an extra pair of hands is helpful for lifting the platform onto the roof. Our Audi Q5 roof rack platform offers a maximum capacity of over 300KG, far exceeding the load limit of the factory roof rails.
How to Remove an Audi Q5 Roof Rack Platform
The disassembly steps are divided into three parts:
- Loosen the bolts and nuts under the platform in step three with a socket tool.
- The entire roof rack platform down and place it on the ground.
- Finally loosen the four screws in the fixture of the fixed parts in step two with a wrench and take out.

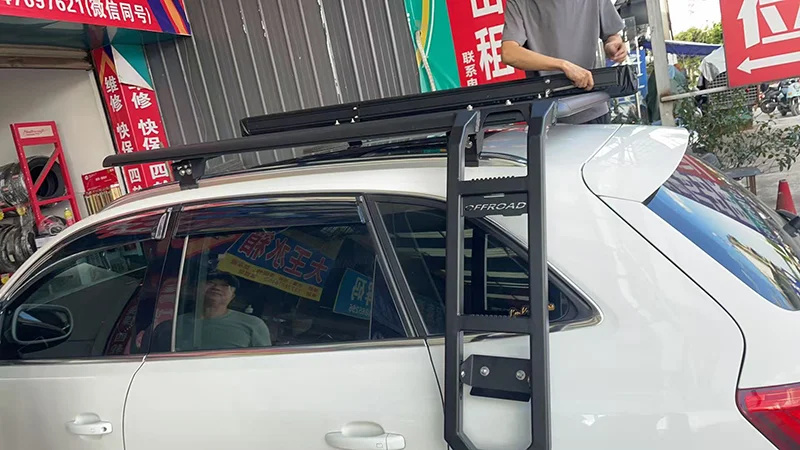

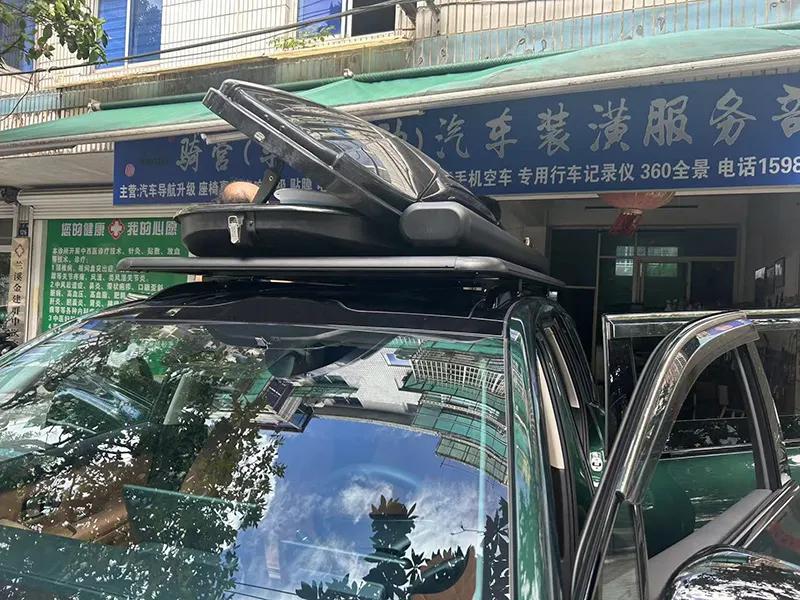

Scene adaptation and use expansion
We (Earthly Engine) offer Audi Q5 roof rack platforms wholesale. If you need to Procurement a roof rack platform for Audi Q5 2015-2022, please feel free to contact us for wholesale quotations.
